WB28K10222 WB29K10023 WB29K10024 WB16X28654 Range Burner Cap Kit For GE

Replacement burner cap set used for some GE range models.

Directly Replaces: WB29K10024, 1086623, AH954203, AP3793055, EA954203, EAP954203, PD00023589, PS954203, WB16X28654, WB29X24720, 4547118, AP6285638, PD00039043, PS12170304, WB28K10222, WB29K10222, 1086516, AH954107, AP3792968, EA954107, EAP954107, PD00025758, PS954107, WB29K10023, 1086622, AH954202, AP3793089, EA954202, EAP954202, PD00023588, PS954202.

Features:

• Redistributes the burner heat for even cooking.

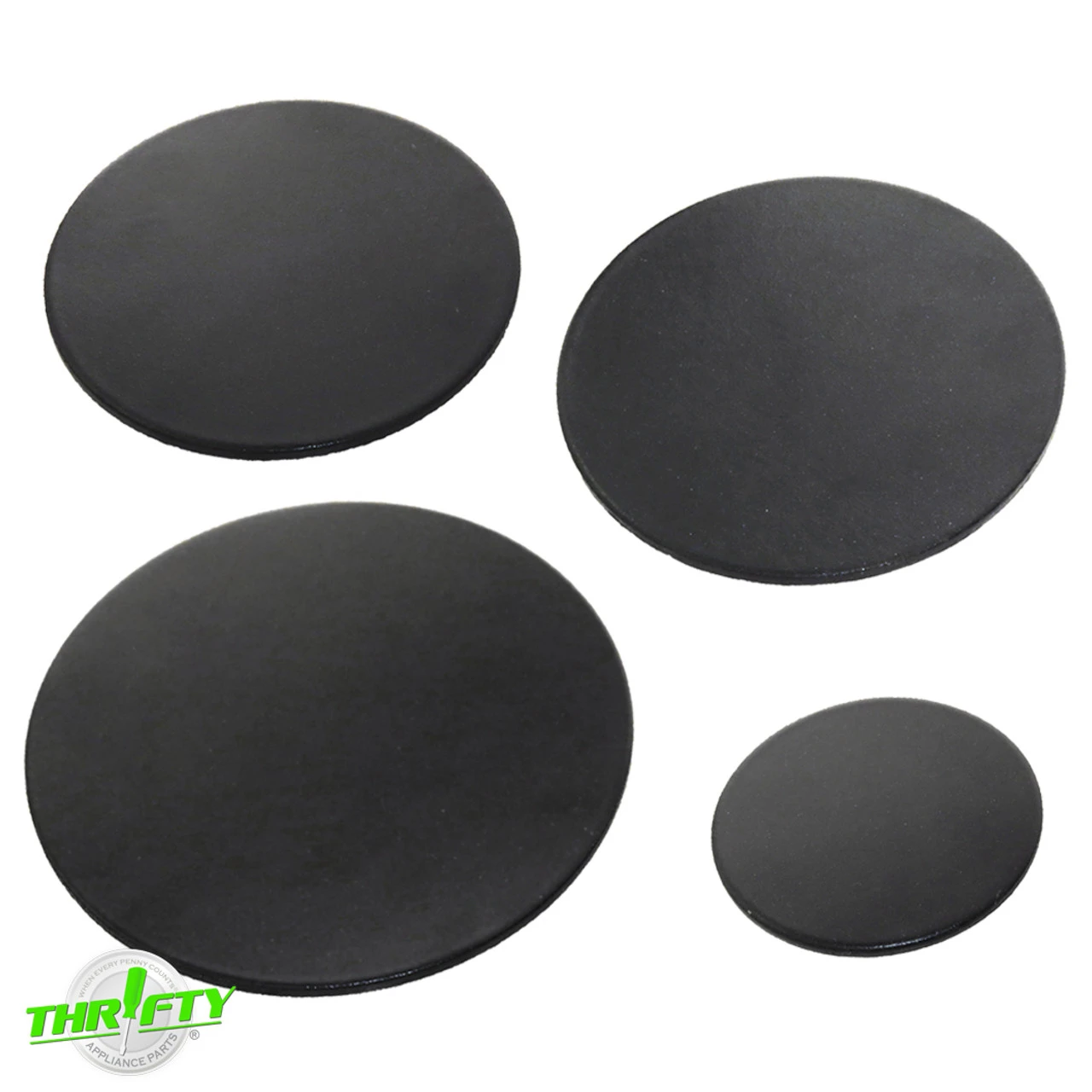

• Kit includes (1) Extra-Large, 15K BTU Burner Cap; (1) Large, 12K BTU Burner Cap; (1) Medium, 9.5K BTU Burner Cap; (1) Small Burner Cap.

APNWB28K10222 Extra Large Cap Specifications:

• Color: Black.
• Material: Cast Iron.
• Finish: Satin.
• Dimensions: 4-3/8″ Diameter x 3/8″H.
• Additional Details: Has 4 prongs on the bottom side.

APNWB29K10024 Large Cap Specifications:

• Color: Black.
• Material: Cast Iron.
• Finish: Satin.
• Dimensions: 3-1/2″ Diameter x 3/8″H.
• Additional Details: Has 4 prongs on the bottom side.

APNWB29K10023 Medium Cap Specifications:

• Color: Black.
• Material: Cast Iron.
• Finish: Satin.
• Dimensions: 3-3/16″ Diameter x 3/8″H.
• Additional Details: Has 3 prongs on the bottom side.

APNWB16X28654 Small Cap Specifications:

• Color: Black.
• Material: Cast Iron.
• Finish: Satin.
• Dimensions: 2-5/16″ Diameter x 3/8″H.
• Additional Details: Has 3 prongs on the bottom side.
