WB27X11094 WB27X709 Microwave Thermostat Kit For GE

Replacement thermal switch and TCO kit used for some Amana, GE, Hotpoint, Jenn-Air, Kenmore, Maytag, and Samsung over-the-range microwave models.

Directly Replaces: DE47-20034A, DE47-20117A, WB27X709, WB27X0709, KSD-40LC 70, 2079750, 255580, AH240278, AP2025678, AP4219754, EA240278, EAP240278, EAP4226431, PD00025212, PD00036724, PS240278, PS4226431, WB27X11094, 1556167, AH2370184, AP4484359, EA2370184, EAP2370184, PD00044040, PS2370184.

Features:

• When the thermal switch, which is normally open, reaches the closing temperature it automatically runs the vent fan; Safety fuses blow in order to cut off power if the microwave overheats.
• WB27X709 / DE47-20034A vent thermal switch (normally open) replacement.
• WB27X11094 cavity thermal cut out fuse thermostat replacement.

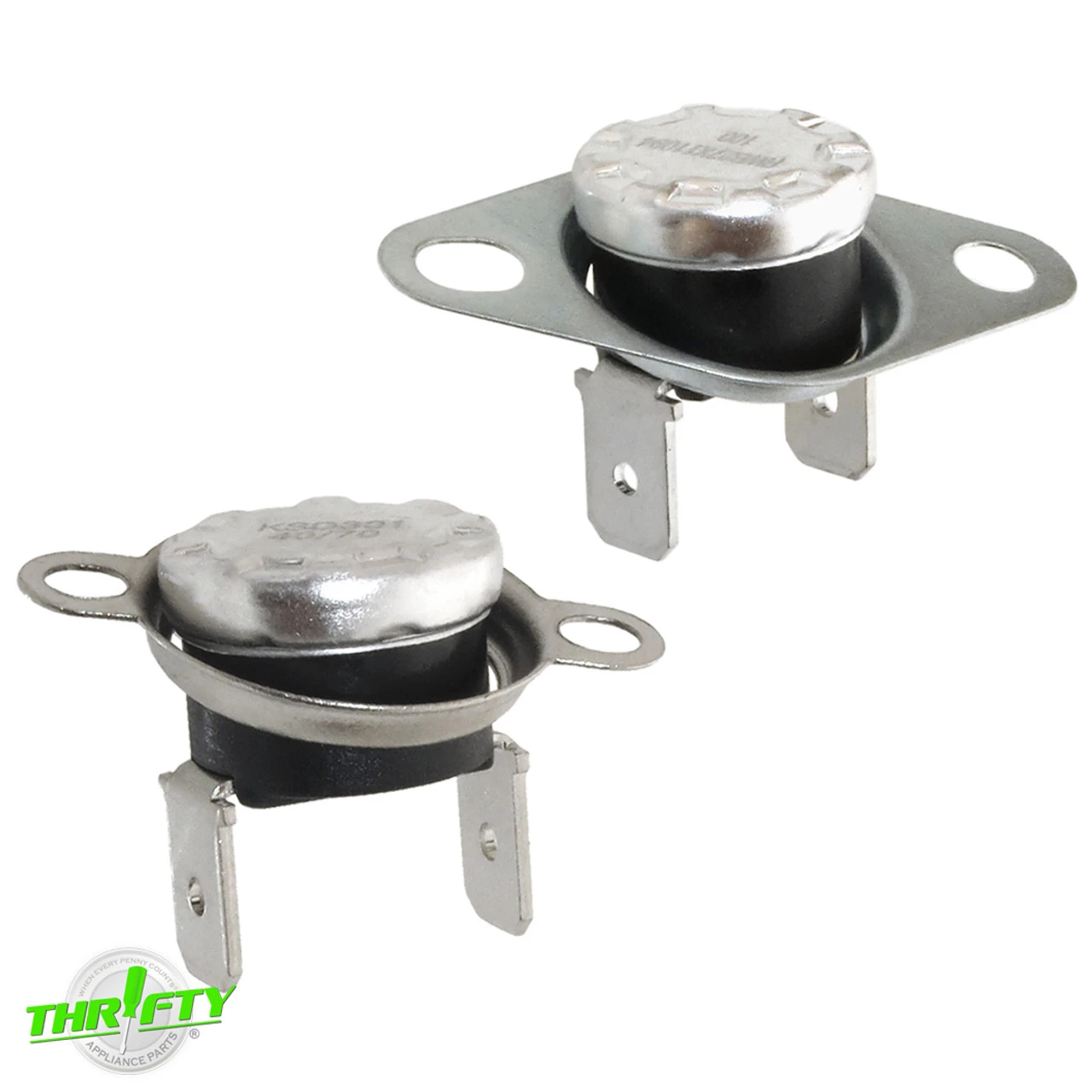

• Includes (1) Vent Thermal Switch, (1) Thermal Cut Out Fuse Thermostat.

WB27X11094 Cavity TCO Thermostat Replacement Specifications:

• Color: Black / Gray.
• Material: Plastic / Metal.
• Finish: Satin.
• Dimensions: 1-9/16″L x 13/16″W x 13/16″H.
• Additional Dimensions: Mounting holes measure 1-3/16″ apart (center to center).

WB27X709 / DE47-20034A Vent Thermal Switch Replacement Specifications:

• Color: Black / Gray.
• Material: Plastic / Metal.
• Finish: Satin.
• Dimensions: 1-3/16″L x 3/4″W x 13/16″H.
• Additional Dimensions: Mounting holes measure 15/16″ apart (center to center).
