WB24T10029 WB17T10006 Range 6″ Burner Infinite Switch & Block For GE / Hotpoint

Replacement infinite switch and terminal block used for some GE, Hotpoint, and Kenmore range models.

Directly Replaces: WB24T10029, 164D1816P008, 769696, AH236754, AP2024076, EA236754, EAP236754, PD00008555, PS236754, WB17T10006, WB17T10009, WB17K10003, WB17T10001, WB17X10007, RR106, 1038747, AH783534, AP3203326, EA783534, EAP783534, PD00001097, PS783534.

Features:

• Infinite switch regulates the heat level of the burner element; Terminal block creates the socket that the burner elements plug in to connect your burner to the cooktop.
• Switch used with some 6″ elements.
• Bakelite range block includes two different style mounting clips.

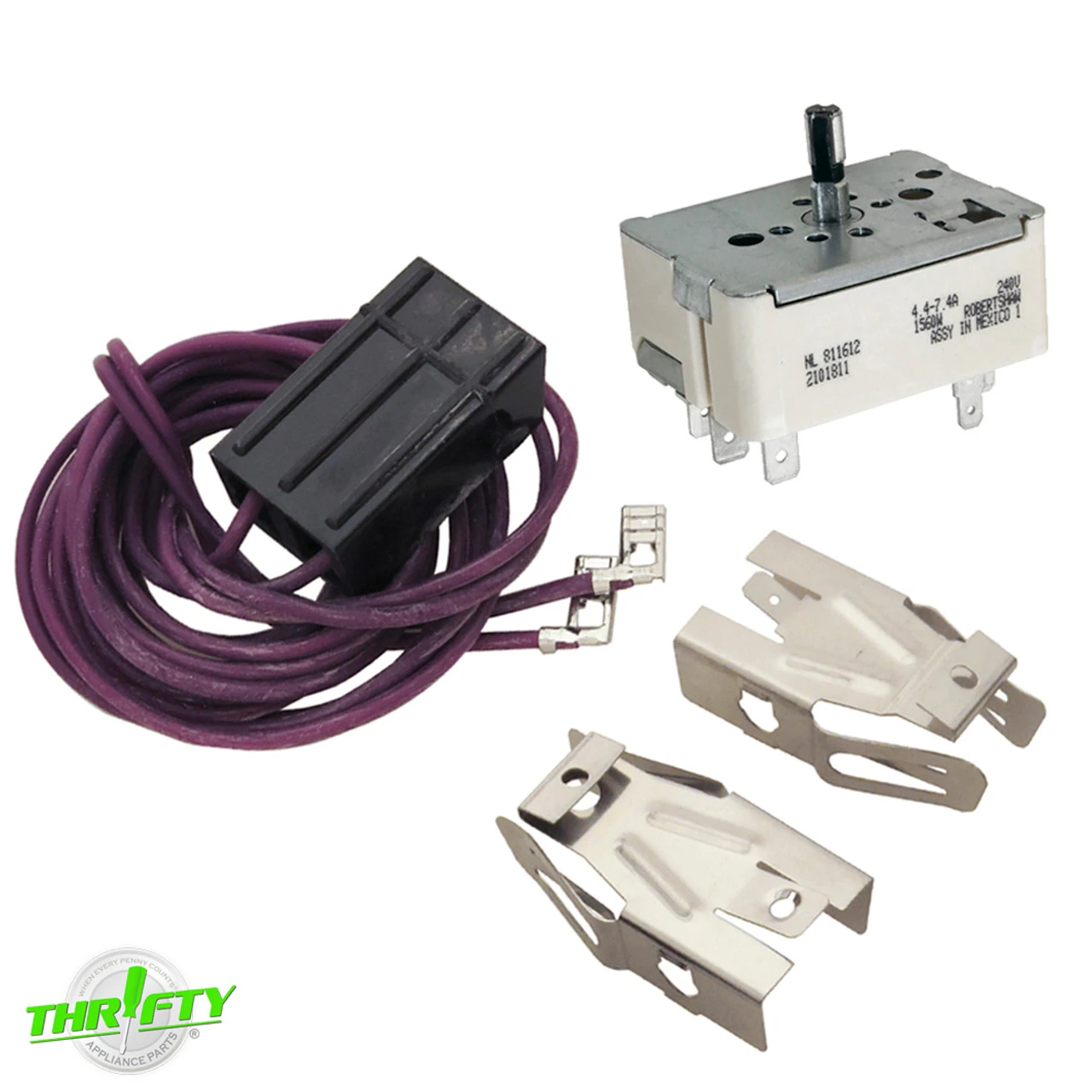

• Includes (1) 5-Terminal Infinite Switch, (1) Range Block with Female Contacts, (2) Mounting Clips, (2) 60″ Wire Leads, Instructions.

APNWB24T10029 Infinite Switch Specifications:

• Color: Gray / Almond.
• Material: Plastic / Metal.
• Electrical Specs: 240V, 1560W, 4.4-7.4A.
• Dimensions: 2″L x 1-3/4″W x 2-1/4″H.

APNWB17T10006 Terminal Block Specifications:

• Color: Black / Purple.
• Material: Plastic / Metal.
• Block Dimensions: 1-7/8″L x 1-3/8″W x 13/16″H.
• Additional Dimensions: Wire Leads measure 60″L.
• View Instructions.
