W11658802 W10347093 Refrigerator Ice Maker & Bin For Whirlpool / KitchenAid

Replacement ice maker and dispenser bucket used for some Ikea, Jenn-Air, KitchenAid, Maytag, and Whirlpool refrigerator models.

Directly Replaces: W11658802, W11579560, W11294907, W11483245, W10917790, W11188383, W10746960, W11109572, W11232541, W11457039, W11485529, W11554919, 4979490, 4974860, AP6997643, EAP16730670, PD00080548, PD00073047, PS16730670, WPW10347093, W10347093, W10347100, 2311097, AP6020018, EAP11753329, PD00028738, PS11753329.

Features:

• Work together to create and hold ice cubes to be dispensed.
• Ceiling mounted ice maker with 2 pin connector in harness.
• Typically used on french door units.

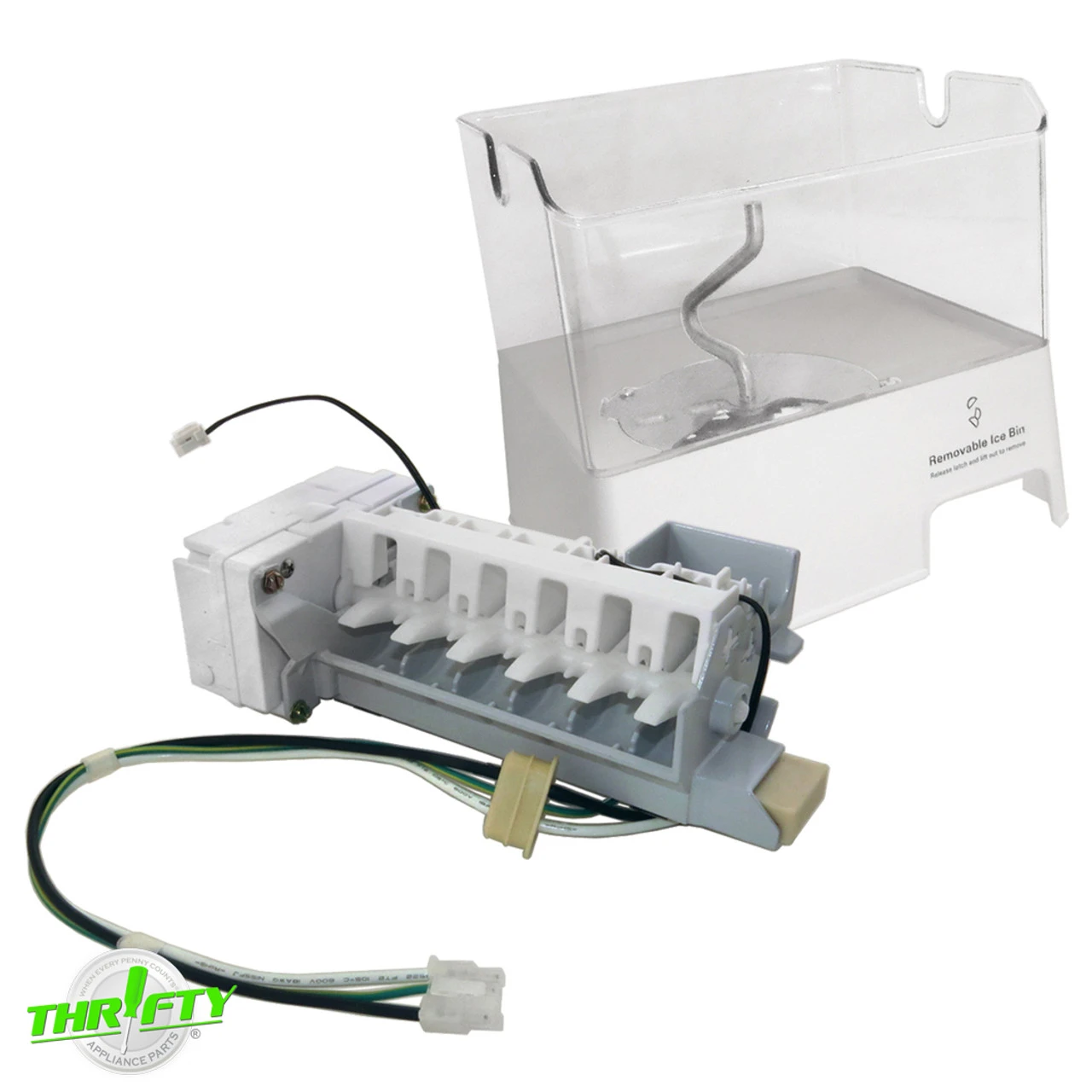

• Includes (1) 6-Cube Ice Maker with 3-Wire Harness and Black Wire Connector, (1) Removable Ice Bin and Auger Assembly.

APNW11579560 Ice Maker Specifications:

• Color: White / Gray/ Off-White / Black / Teal.
• Material: Plastic / Metal.
• Finish: Glossy.
• Electrical Specs: Heater 115V, 50/60Hz, 110W; Motor 12VDC.
• Dimensions: 8-7/8″L x 4-1/8″W x 2-7/8″H.
• Additional Dimensions: 3-wire harness extends approx. 20″ from ice maker. Black wire connector (unhooked) extends approx. 12-5/8″ from ice maker.

NOTE: This item is commonly misdiagnosed. Please make sure this is the part needed, prior to purchase, as this item is not eligible for return unless the incorrect icemaker was purchased. Other common parts that fail in conjunction with this ice maker are the ice room fan, the ice level emitter / receiver boards, ice tray thermistor. User should also should check that water is being correctly diverted to the ice maker from the inlet valve. See the tech sheet for diagnostic tests you can perform to help determine the point of failure.

View Tech Sheet

APNW10347093 Ice Bucket Specifications:

• Color: White with Black Lettering / Clear.
• Material: Plastic / Metal.
• Finish: Glossy.
• Dimensions: 9-1/8″L x 7-1/4″W x 8-3/8″H.
