W11205082 W11462342 Refrigerator LED Light Module Kit For KitchenAid / Whirlpool

Replacement LED light module kit used for some KitchenAid and Whirlpool refrigerator models.

Directly Replaces: W11205082, W10739303, W10843828, 4844358, AP6301838, EAP12349214, PD00052489, PS12349214, W11462342, W10908166, W10607479, W10843339, 4959065, AP6989197, EAP16218086, PD00060633, PS16218086.

Features:

• Works to light up the fridge or freezer cabinet.
• Typically used on french door units.

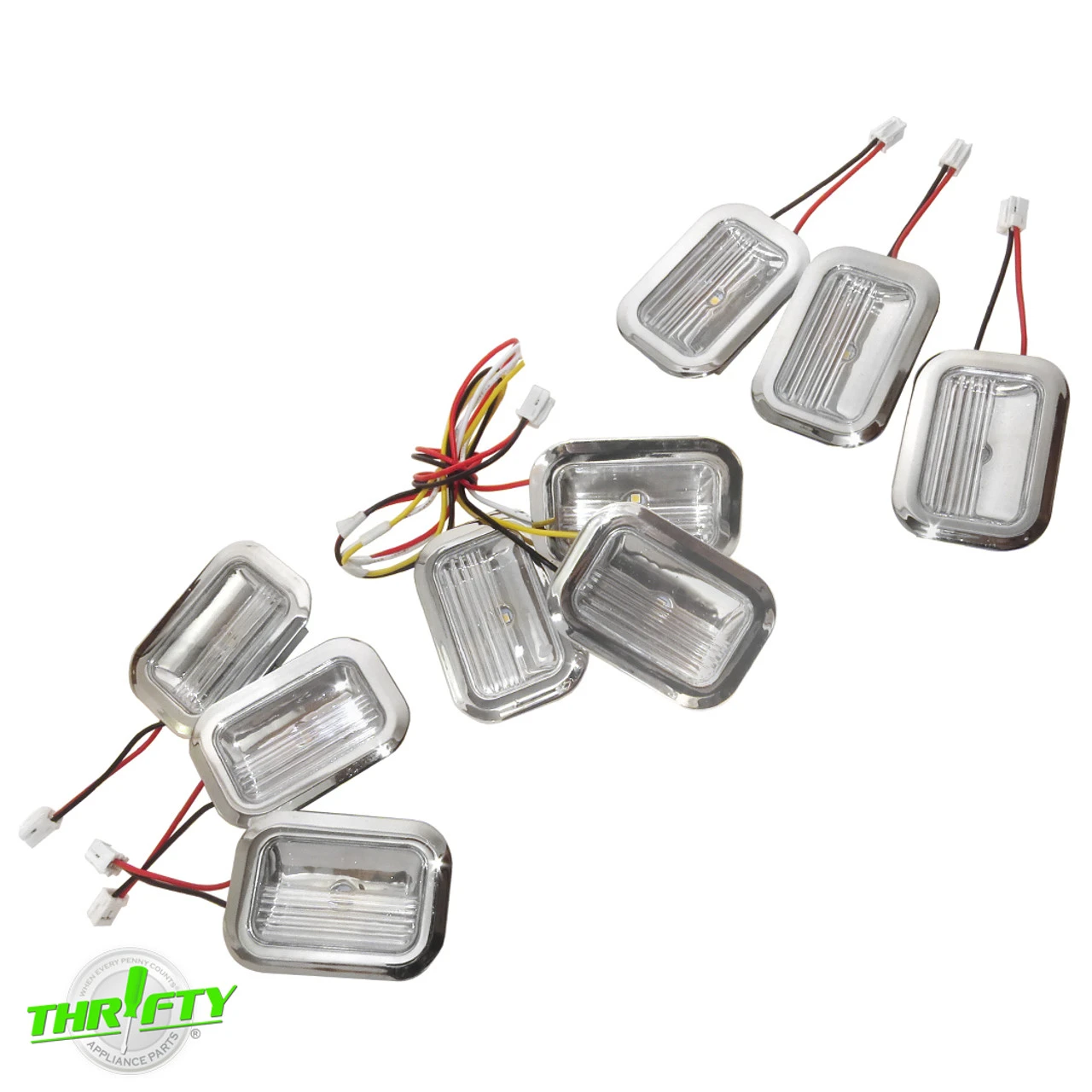

• Includes (3) APNW11205082 LED Light Modules with Harness, (6) APNW11462342 LED Light Modules with Harness.

APNW11205082 LED Module Set Specifications:

• Color: Chrome / Translucent.
• Material: Plastic.
• Finish: Glossy.
• Module Dimensions: 2-5/8″L x 1-7/8″W x 1/2″H.
• Additional Dimensions: Full harness measures approx. 16-1/2″L; Approx. 9″ from harness 3-way to end connector.

APNW11462342 LED Light Module Specifications:

• Color: Chrome / Transparent.
• Material: Plastic / Metal.
• Finish: Glossy.
• Dimensions: 2-5/8″L x 1-13/16″W x 5/8″H.
• Additional Dimensions: Harness and plug extend approx. 2-3/4″L from module.

*Some refrigerator LED lights operate in a series and tend to go out at the same time. Please be aware that it may take replacing multiple or even all LEDs within the series to completely resolve the lighting problem.

NOTE: Due to the sensitive nature of this item, it comes sealed in an anti-static bag. This bag safeguards the part from static build-up that can be damaging to it’s electronic components. Because of this, we are unable to accept returns for this part once the anti-static bag has been opened.
