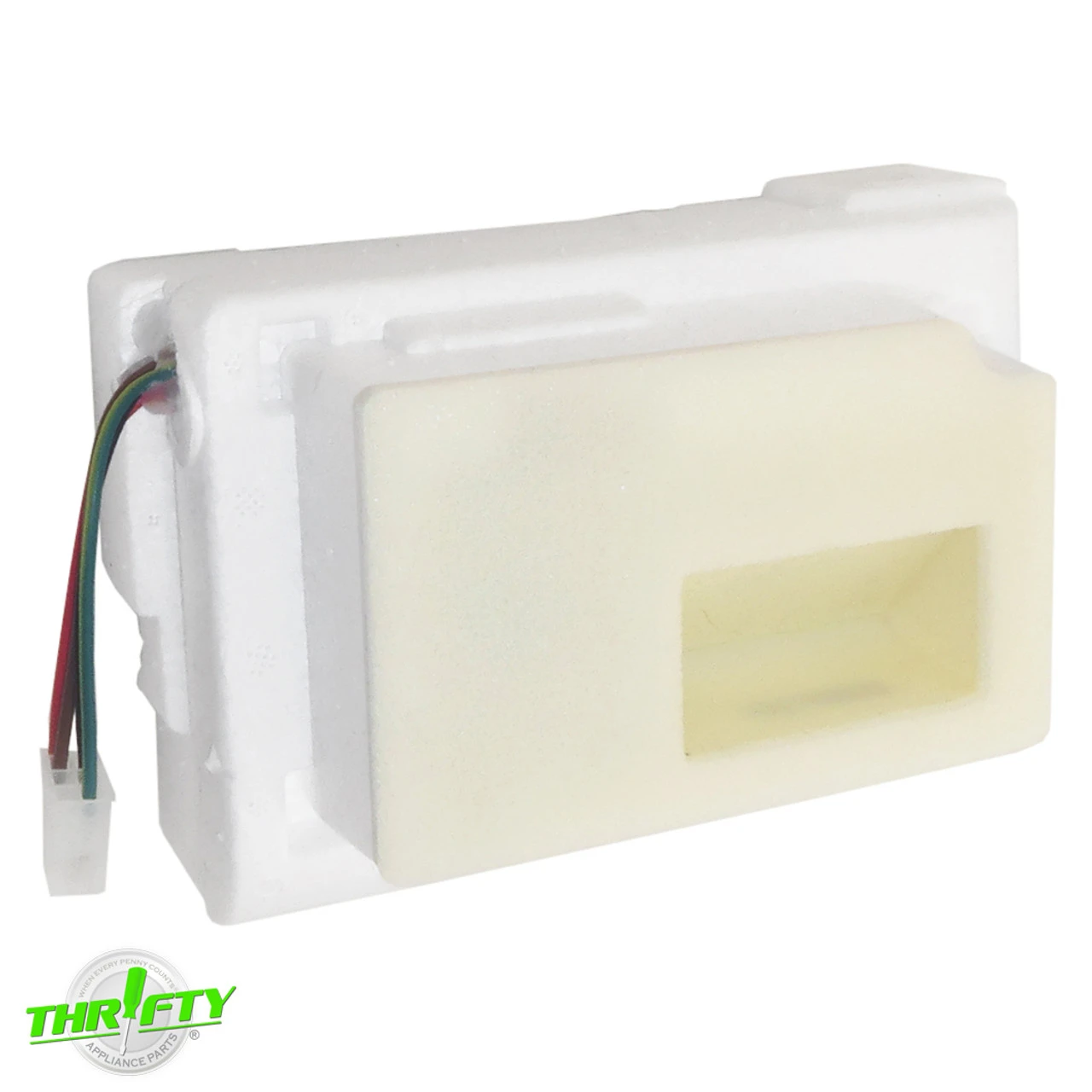

W11164593 Refrigerator Air Diffuser For Kenmore

Replacement air diffuser used for some Ikea, Kenmore, KitchenAid, Maytag, and Whirlpool refrigerator models.

Directly Replaces: W11164593, W10837808, W10362947, W10749835, W10699904, W10750143, W10837808VP, W10869522, 4591183, AP6285040, EA12347986, PD00038794, PS12347986.

Features:

• Controls a small door that opens/closes to allow cold air to flow from the freezer to the refrigerator section.
• Commonly used on some side by side refrigerators.
• Includes (1) Diffuser & Motor Assembly with 4-Wire Harness and Styrofoam Housing.

Specifications:

• Color: White with Multi Colored Harness.
• Material: Plastic / Metal / Styrofoam.
• Electronic Specs: 120V, 60Hz, 3.5W.
• Dimensions: 7″H x 4-3/4″W x 3-1/8″H.
• Additional Dimensions: Harness & plug measure approx. 3-3/4″L.
