W10870822 Refrigerator Ice Level Emitter Board For Kenmore

Original price was: $98.75.Current price is: $69.13.

Made of environmentally friendly materials

Multiple payment methods, 100% payment security

Get Quality, Get More

High quality products, hassle-free returns.

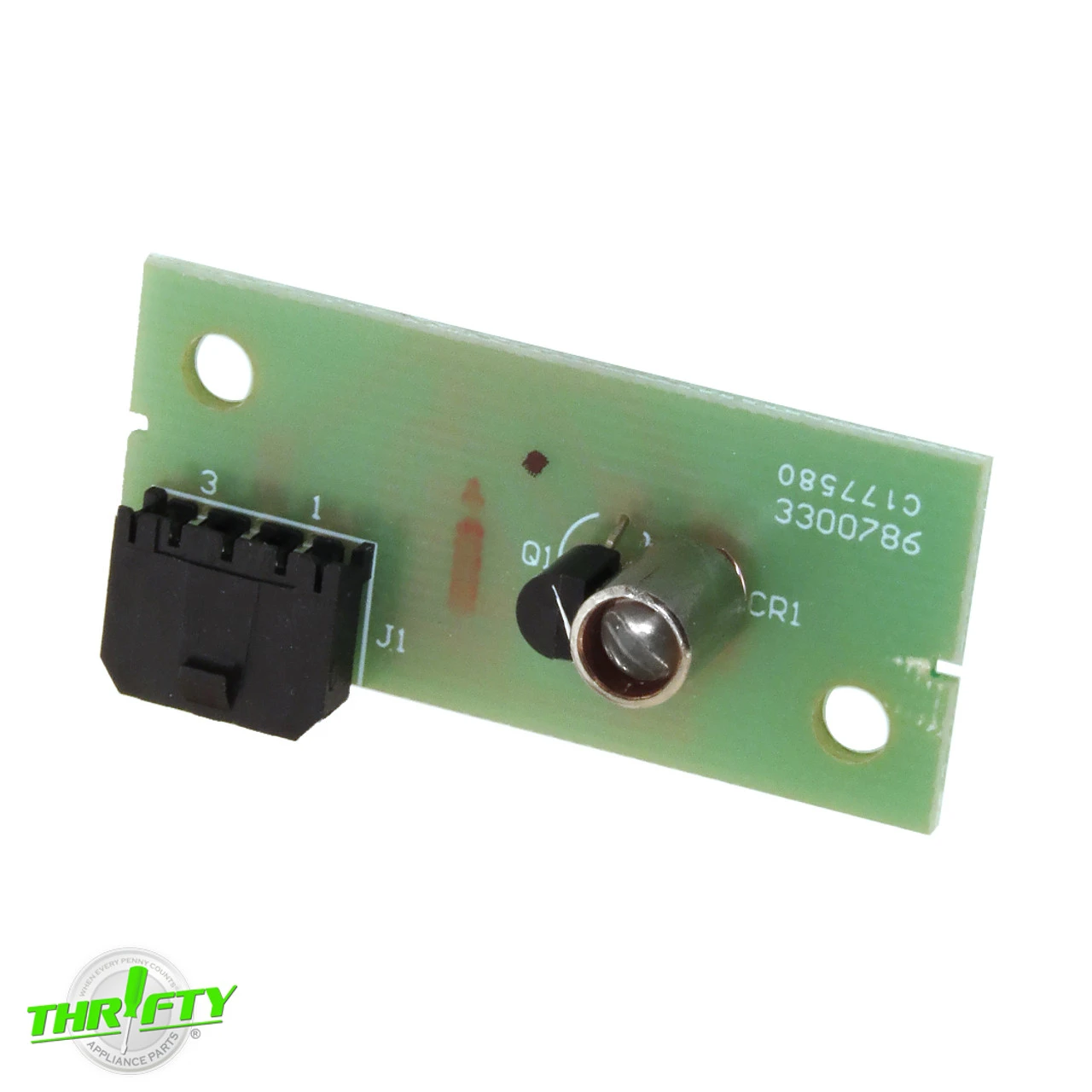

Replacement ice level emitter board used on some Ikea, Jenn-Air, KitchenAid, Kenmore, Maytag, and Whirlpool refrigerator models.

Directly Replaces: W10870822, W10180607, W10518659, WPW10518659, W10832970, 4454519, AP6026733, EAP11738093, PD00029787, PS11738093.

Features:

LED light sensor emitter board.
Typically used on in-door ice buckets on french door models.
Commonly used with APNW10898445 Receiver Board.
Includes (1) Emitter Board with a 3-pin Connection.

Specifications:

Color: Green.
Material: Plastic / Metal.
Finish: Glossy.
Dimensions: 1-13/16″L x 1/2″W x 7/8″H.

NOTE: Due to the sensitive nature of this item, it comes sealed in an anti-static bag. This bag safeguards the part from static build-up that can be damaging to it’s electronic components. Because of this, we are unable to accept returns for this part once the anti-static bag has been opened.

Compatible Models:

How do I find my model number?

Don’t see your model listed? Submit this form to get help finding the right part.
