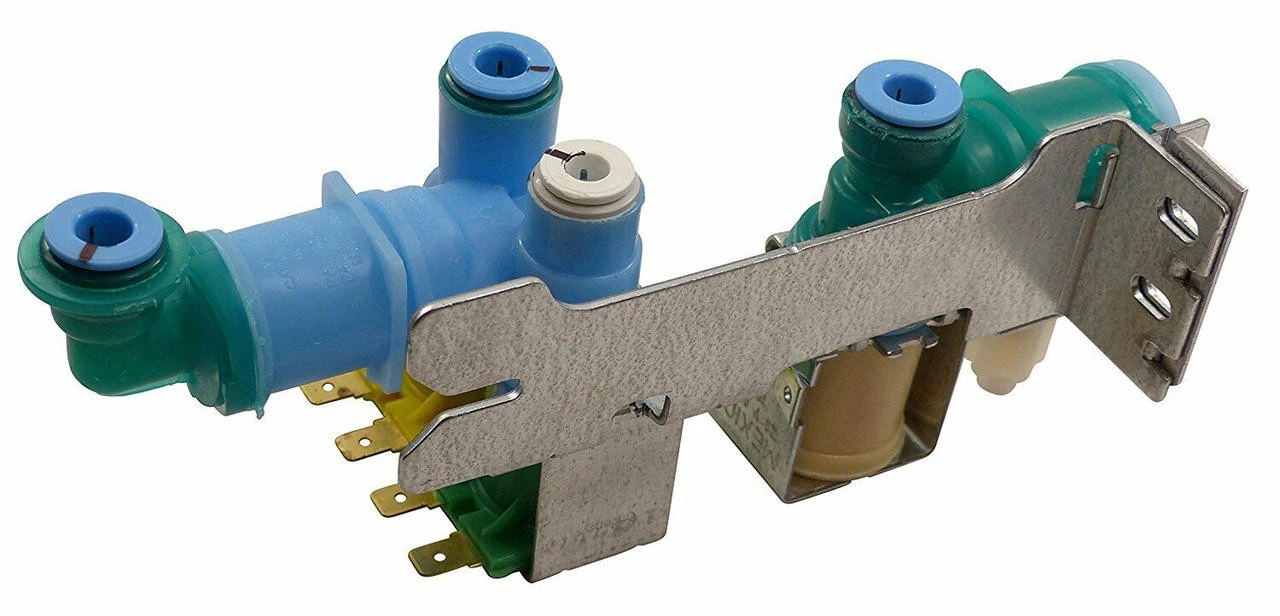

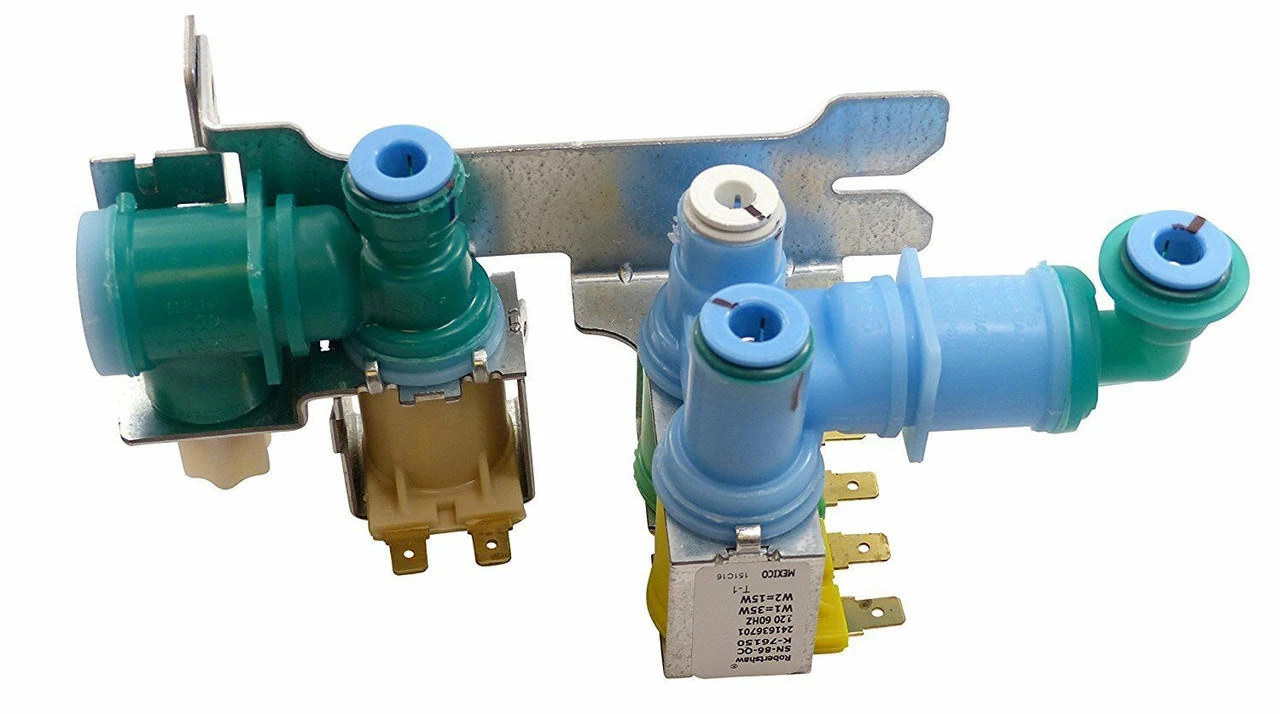

Refrigerator Water Valve Electrolux Frigidaire 242252702 AP5671757 PS7784018

---

Also replaces:

AP5671757, PS7784018 240321801, 240505101, 240505102, 240508101, 240508102, 240531101, 241734301, 241734302, 2692163, PS7784018
This is a Three (3) coil water valve.

Each coil is rated at 120 Vac.

The Red and Yellow Coil is rated at 20 Watt the Green Coil is rated at 35 Watt.

Four (4) lines of tubing attached to the the underneath of the valve.

One 1/4″ tube and 3 are 5/16″ tubing. Tubing not included. On the top of the valve body attaches a 1/4″ tubing. So a total of 5 water lines attach to this valve.

NOTE :

Please note this part is the newer version and updated changes have been made to this valve. The Older version of this part has the screw-on type compression fittings.

The Newer version is push-in style compression fittings.
