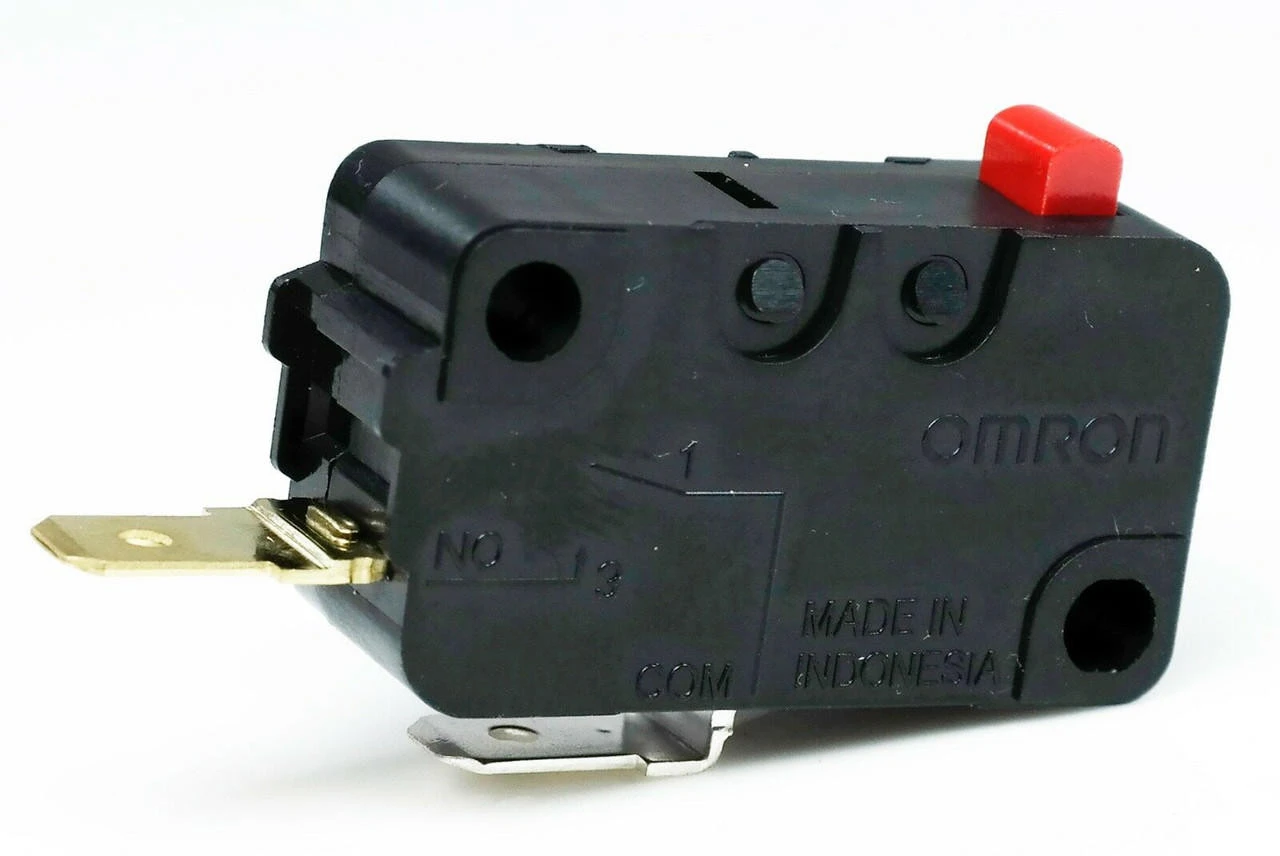

Microwave Door Switch WB24X829 WB24X10029 WB24X10047 WB24X10071 (Pack of 2)
Omron Switch Snap Action N.O. SPST Pin Plunger Quick Connect 16A 250VAC 250VDC 372.85VA 1.96N Screw Mount
New Frigidaire microwave micro door relay switch :
5304440026.
Also works with :
Frigidaire model FMV156DCC, CFMV156DBC, CFMV156DBD AND OTHERS.
Part Aliases :
366298 D3V16G3C25.
Description :
- The D3V-16G-3C25 snap-action switch from Omron makes opening or closing your circuit a fast operation.
- It has a SPST configuration. This device has a maximum current rating of 16 A @ 250VAC.
- This snap action switch has a minimum operating temperature of -25 °C and a maximum of 105 °C.
- The D3V-16G-3C25 snap action switch has a quick connect termination style.
- This product is 37.8 mm long, 21.6 mm tall and 10.3 mm deep.
- The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.
Replacement OEM Part :
It is compatible for the following models for 28QBP0497, D3V-16G-3C25, SZM-V16-FA63, WB24X10076, WB24X10038, WB24X801,WB24X796, WB24X5228, WB24X5227, WB24X445, WB24X441, WB24X439, WB24X429, WB24X426,WB24X414, WB24X401, WB24X384, WB24X368, WB24X3297, GSM-V1603A2, 75304440026, 5304467694, 5303319558, SZM-V16-FA63, W10269460, 61005520, 940337, 3405-001034, ANE61424L0AG, ANE6142-1450, 3405-000178, J61424T00AP, QSWMA085WREO, J61414T00AP, MOS0223K, QSWMA137WREO, R1491, ANE6142F60, NE9870, R1611, ANE6142F60, 46-692286-3, QSWMA11OWREO.
