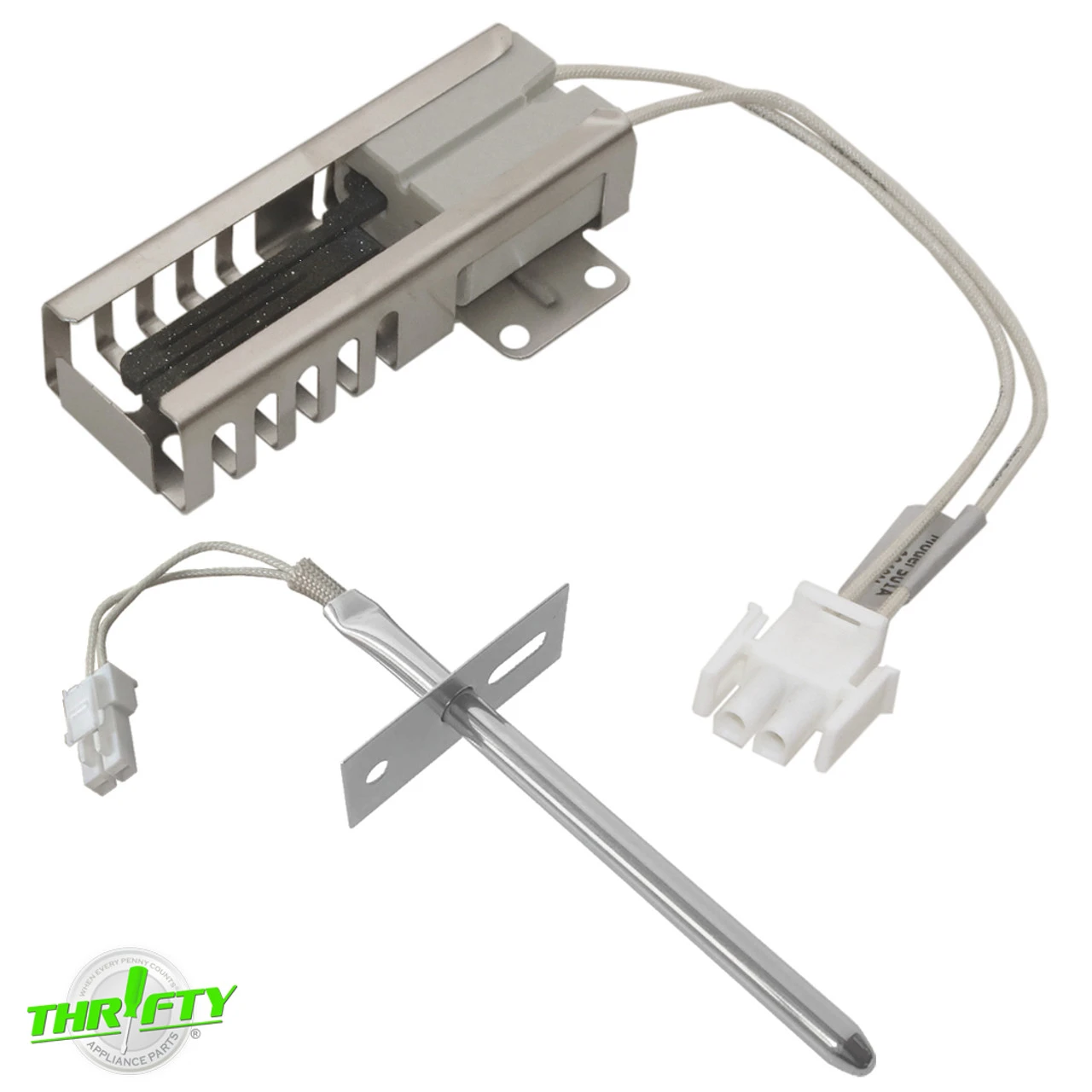

DG94-00520A DG32-00002B Oven Ignitor & Sensor Probe For Samsung

Original price was: $60.75.Current price is: $42.53.

Made of environmentally friendly materials

Multiple payment methods, 100% payment security

Get Quality, Get More

High quality products, hassle-free returns.

Replacement sensor probe and ignitor used for some Samsung oven models.

Directly Replaces: DG32-00002B, DG32-00002A, 2087461, AP4343210, EAP2567734, PD00002020, PS2567734, PS4240743, DG94-00520A, 114491, 2692271, AP5577941, EAP4241428, PD00027453, PS4241428.

Features:

Ignitor draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature; Probe senses and sends the oven temp reading to the control board.
Ignitor with 8″ leads with female pins; Used as a bake or broil igniter, depending on the model.
Includes (1) Sensor Probe and 2-Wire Harness Assembly, (1) Igniter with Bracket and Lead/Plug.

APNDG32-00002B Sensor Probe Specifications:

Color: Gray / White.
Material: Metal with plastic plug.
Dimensions: 3-7/8″L x 1-3/4″W x 3/4″H.
Additional Dimensions: Probe only measures approx. 2-7/8″L; Lead / plug measures approx. 3″L.

APNDG94-00520A Ignitor Specifications:

Material: Metal / Ceramic / Plastic.
Electrical Specs: 3.4 – 3.6A.
Dimensions: 3-3/4″L x 1-3/4″W x 13/16″H (Cage / Bracket); Block measures 1-1/2″L.
Additional Dimensions: Harness and plug extend 7-7/8″L from ignitor.

Compatible Models:
