DG94-00520A (2 Pack) Oven Ignitor For Samsung

Original price was: $72.75.Current price is: $50.93.

Made of environmentally friendly materials

Multiple payment methods, 100% payment security

Get Quality, Get More

High quality products, hassle-free returns.

Replacement ignitor used for some Samsung oven models.

Directly Replaces: DG94-00520A, 114491, 2692271, AP5577941, EAP4241428, PD00027453, PS4241428.

Features:

Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
Has 8″ leads with female pins.
Used as a bake or broil igniter, depending on the model.

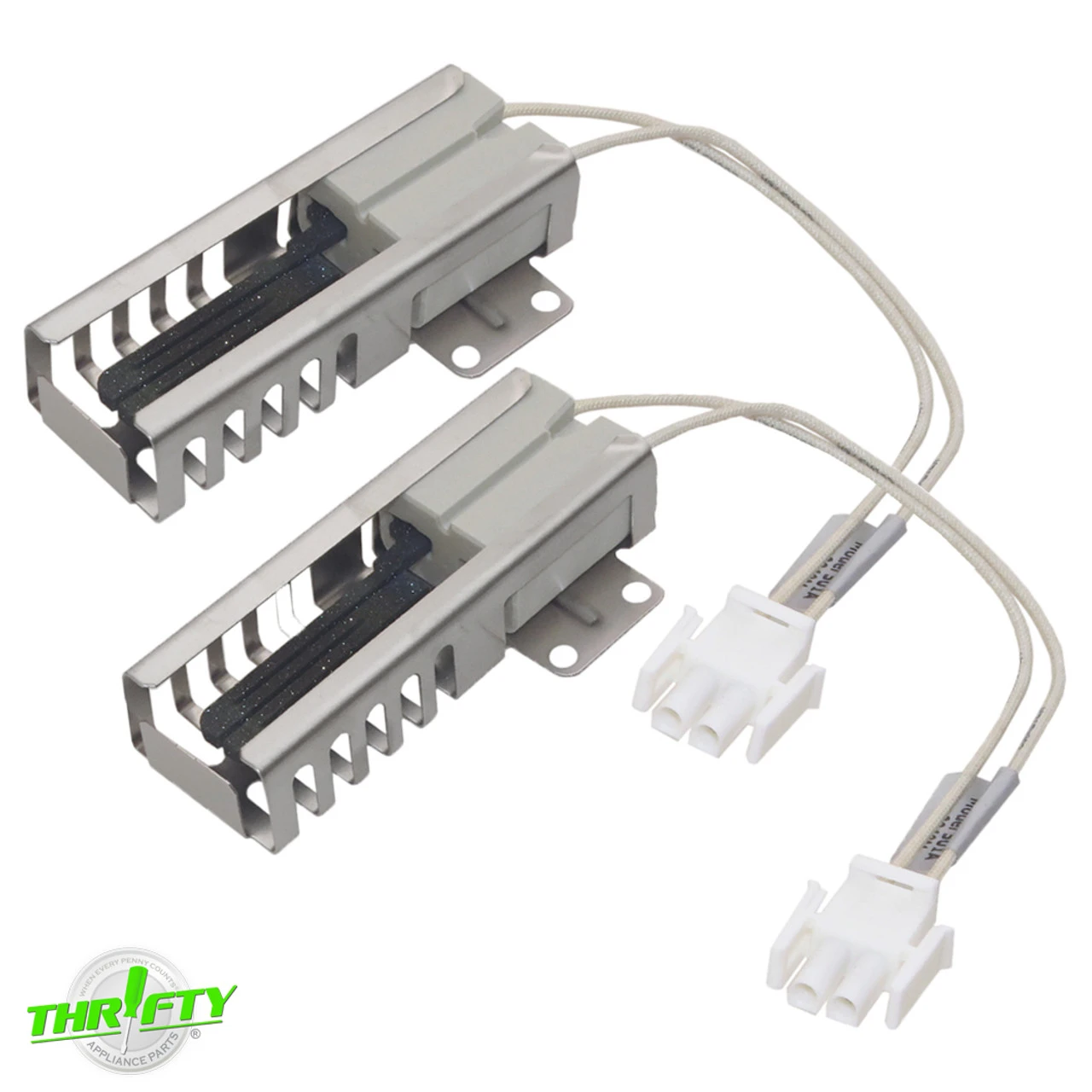

Includes (2) Igniters with Bracket and Lead/Plug.

Specifications:

Material: Metal / Ceramic / Plastic.
Electrical Specs: 3.4 – 3.6A.
Dimensions: 3-3/4″L x 1-3/4″W x 13/16″H (Cage / Bracket); Block measures 1-1/2″L.
Additional Dimensions: Harness and plug extend 7-7/8″L from ignitor.

Compatible Models:
