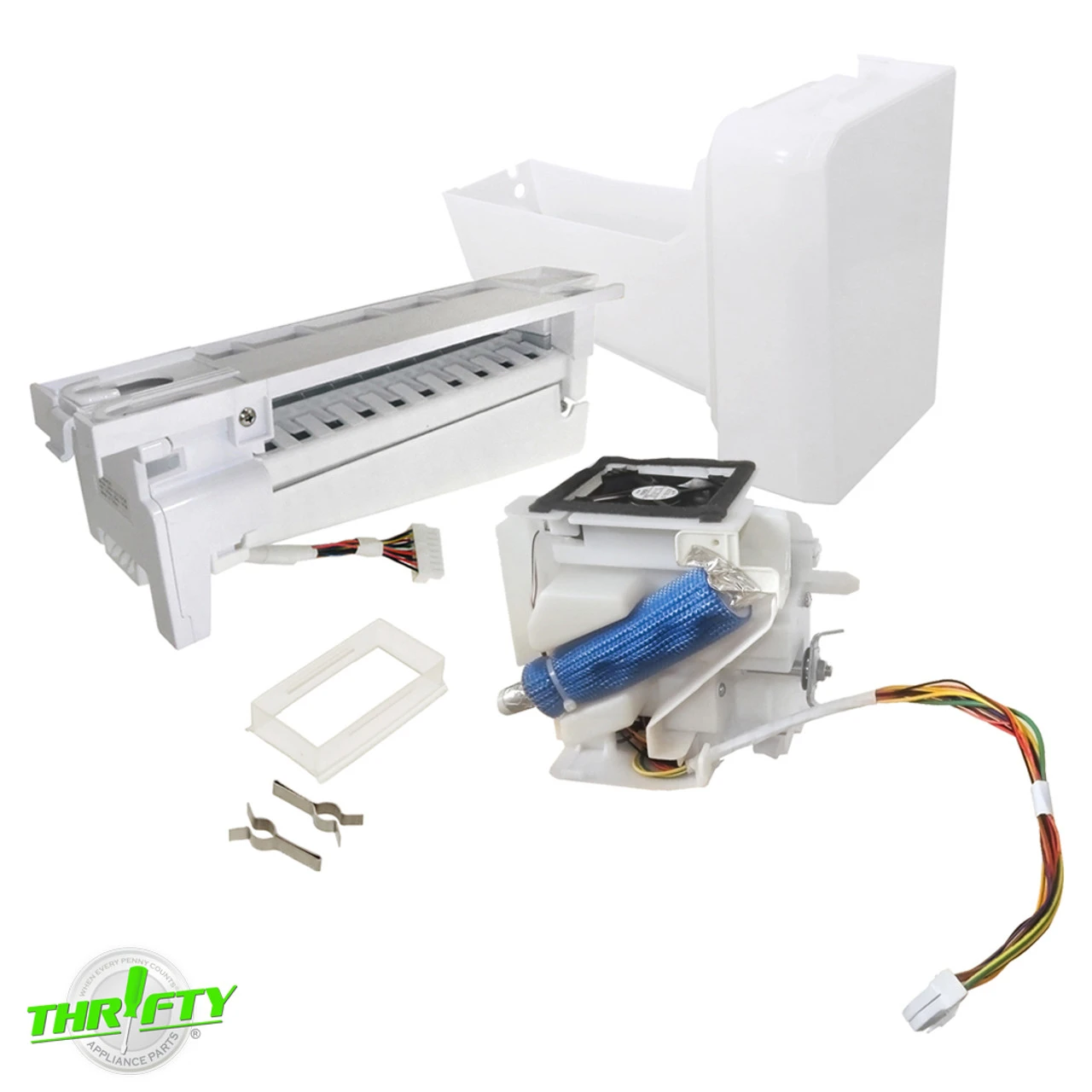

DA97-15217D DA82-01396A DA97-12540G Refrigerator Complete Ice Maker Kit For Samsung

Replacement long ice maker, ice bucket, auger motor, and y-clip kit used for some Samsung refrigerator models.

Directly Replaces: DA82-01396A, DA97-12604A, DA97-14474C, DA97-14474A, DA97-12604D, DA97-14471A, DA99-03924A, DA63-06925A, DA63-06925AX002, 3967988, 4456005, 3974077, AP5964753, AP5915280, AP6034185, EAP9604454, EAP9604451, EAP11717777, PD00024247, PD00032910, PD00047322, PS9604454, PS11766800, PS9604451, PS11717777, DA97-15217D, DA97-15217B, DA97-12317A, DA97-12317B, DA97-15217A, DA97-15217E, DA97-15335A, DA97-15217A-00, DA97-15217A-00, SZAB001TA1, 4546148, AP6261445, EAP12115595, PD00037355, PS12115595, DA97-12540G DA97-12540A, 2606JL-04W-S39, 4545834, AP6025062, EAP11758619, PD00030367, PS11758619, DA82-02367A, DA61-12775A, 4922147, AP6261443, EAP12115467, PD00038237, PS12115467.

Features:

• Together the ice maker and bin make and hold ice for the dispenser.
• Ice maker has a solid tray with electronic eye sensor.
• Longer style ice bucket with latch.
• New bucket latch designed to replace old push button latch. Note the new latch must be installed for the new ice bin to fit correctly.
• Features an improved, more durable stainless steel auger.
• Includes (1) 10-Cube Ice Maker and Harness Assembly, (1) Ice Bucket with Latch and Auger.

APNDA97-15217D Ice Maker Specifications:

• Color: White.
• Material: Plastic Housing.
• Electrical Specs: 120VAC, 60Hz, 141W.
• Overall Dimensions: 14″L x 4″W x 5-1/8″H.
• Additional Dimensions: Harness and plug measure 9-3/4″L.

APNDA82-01396A Long Ice Bin Specifications:

• Color: White.
• Material: Plastic / Metal / Rubber.
• Finish: Glossy.
• Dimensions: 20″L x 5-5/8″W x 11-3/8″H.
• Additional Dimensions: Latch measures 4-5/8″L x 2-11/16″H x 5/8″W.

APNDA97-12540G Auger Motor Specifications:

• Color: White.
• Material: Plastic / Metal.
• Electrical Specs: Rated 115V, 60Hz; Heater – 12VDC, 2.3W; Fan Motor – 12VDC, 0.10A.
• Motor Assembly Dimensions: 8″L x 4-3/8″W x 6-3/8″H.
• Additional Dimensions: Wire harness extends 14-1/2″ from motor.

APNDA82-02367A Y-Clip Specifications:

• Color: White / Translucent.
• Material: Plastic / Metal.
• Finish: Matte.
• Retainer Dimensions: 2-1/4″L x 1-1/4″W x 1/2″H.
• Additional Dimensions: Y-clips are 1-1/16″L.
