DA31-00334C DA32-10109W Refrigerator Evap Fan Motor & Thermistor For Samsung

Replacement evaporator fan motor and thermistor used for some Samsung refrigerator models.

Directly Replaces: DA31-00334C, DA31-00287B, DA96-00968A, DA31-00305A, 4976115, AP6803162, EAP12590897, PD00075168, PS12590897, DA32-10109W, DA32-10104F, 1668645, AP4136948, EAP4138701, PD00002215, PS4138701.

Features:

• The evaporator motor pulls air through the evaporator coils to remove heat from the circulating air within the unit.
• The thermistor monitors the temperature within the cabinet.

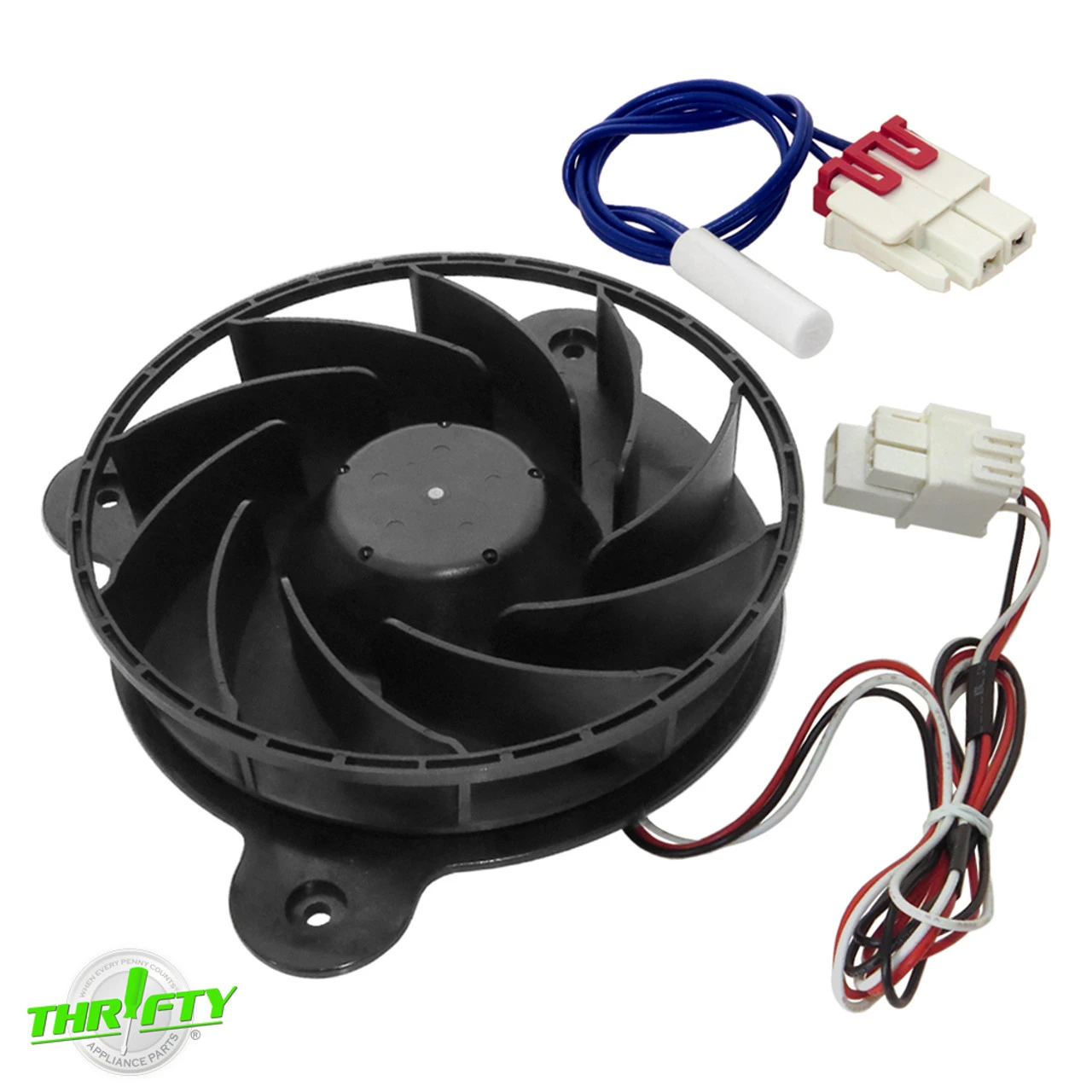

• Includes (1) Evap Fan & Motor Assembly, (1) thermistor sensor with a 2-pin connection.

APNDA31-00334C Evaporator Fan Specifications:

• Color: Black with Black/Red/White Harness.
• Material: Plastic / Metal.
• Electrical Specs: 12VDC, 0.26A.
• Overall Dimensions: 4-7/8″L x 1-5/16″W x 4-5/8″H.
• Additional Dimensions: Harness extends 26″ from fan assembly. Fan Blade is 4-3/4″ diameter.

APNDA32-10109W Thermistor Specifications:

• Color: White probe with blue lead and almond plug.
• Material: Plastic / Metal.
• Dimensions: 1″L x 1/4″ Diameter Probe.
• Additional Dimensions: Lead and plug measure approx. 11-1/8″L.
