2198597 W10408179 Refrigerator Ice Maker & Valve For Whirlpool / KitchenAid

Replacement ice maker and water valve used for some Ikea, Jenn-Air, Kenmore, KitchenAid, Maytag and Whirlpool refrigerator models.

Directly Replaces: 2198597, 2198597R, 2198597VP, 2198678, 626663, W10122502, W10190960, W11381367, RIM597, 1016069, AP3182733, AH869316, EA869316, EAP869316, PD00002332, PS869316, B008DJY0WY, B00DM8K1NS, B001EYC2K2, B008DJJ0AQ, B005HFB65Q, B00NMNLNLM, B002ZNC8XW, B0156N91VO, B008DJXKWK, W10408179, W10408179VP, 2186486, 2188622, 2188708, 2188746, 2205762, 2255457, 2304757, 2304833, 2315534, 4389177, WV8179, 1938614, AH3497634, AP5263471, EA3497634, EAP3497634, PD00002943, PS3497634.

Features:

• This icemaker is for 25-27 cubic feet models that have the ice bucket in the door.
• Water valve controls the flow of water to the ice maker and dispenser.
• Per the manufacturer this icemaker does not include a bail / shut-off arm or bottom mounting bracket. If needed, both will have to be re-used from the original unit.

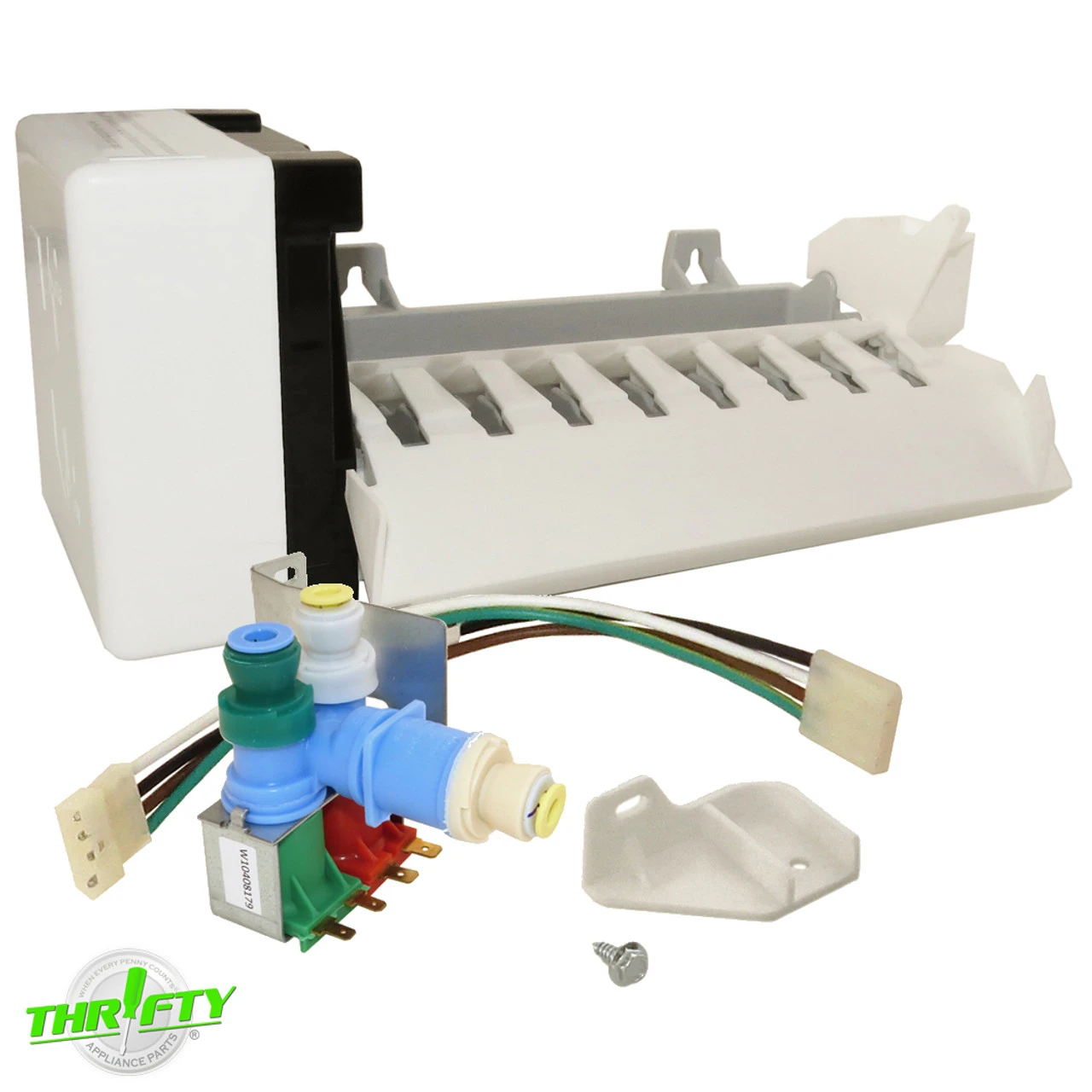

• Includes (1) 8-Cube Ice Maker Assembly with Heavy Duty Rake, (1) Wire Harness, Installation Hardware, Instructions, (1) 2-Solenoid Water Valve with Bracket.

APN2198597 Specifications:

• Color: White / Black / Gray.
• Material: Plastic / Metal.
• Overall Dimensions: 11-3/8″L x 5-5/8″W x 4-3/4″H.
• Additional Dimensions: Harness measures approx. 10 7/8″L.
• View the Installation Instructions

APNW10408179 Specifications:

• Color: Blue / Green / White / Red / Gray.
• Material: Plastic / Metal.
• Electrical Specs: 120V (ea), 50/60Hz (ea), 20W (W2), 35W (W1).
• Dimensions: 5″L x 3-3/4″W x 3-1/4″H.
• Additional Dimensions: (1) 1/4″ inlet, (1) 5/16″ outlet, (1) 1/4″ outlet; 3/16″ terminals (Green), 1/4″ terminals (Red).
